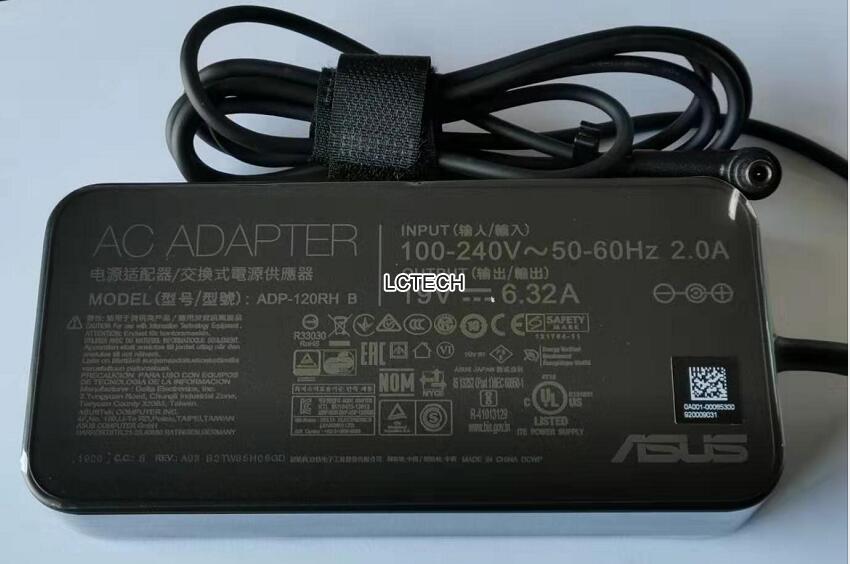

Technical specifications技術規格：

Input輸入:

AC Socket:輸入接口 ： C6 梅花尾

Input range輸入電壓范圍：90Vac~264Vac

Frequency頻率：47Hz~63Hz

Input current輸入電流：2A Max at 100Vac input voltage

Efficiency效率：The power supply efficiency shall be more than 86.5% measure at the    nominal voltagemaximum load,The AC input set at the normal voltage

Output輸出

Output Power輸出功率：120W

Output Volts/Amps輸出電壓/電流：19.0V/6.32A

Output ripple and noise輸出紋波：350 mV peak to peak

DC Plug輸出接口:  華碩Asus 6.0 X 3.5

           此款有臺達Delta logo,輸出接口按客戶項目需求提供

Dimensions (mm)尺寸

L160.0 x W76.20 x H25.4
